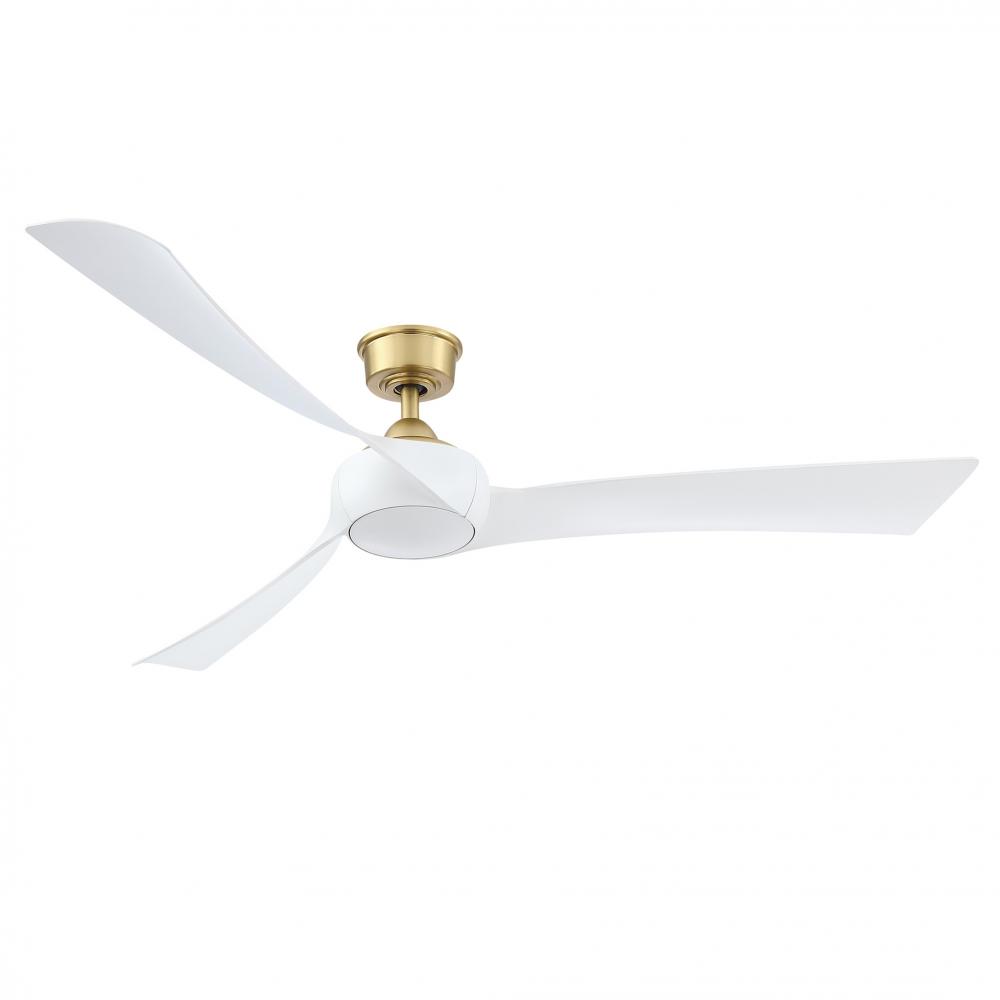

Wrap Custom Motor - BS (MAD8531BS)
by Fanimation
Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Specification
Item #
MAD8531BS
Dimensions
Height: 15.96"
Width: 64.00"
Length: 64.00"
Additional product details
Vendor Item #
MAD8531BS
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
, Brass
Option
Energy Star
, Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Category
Fan-Multi
Finish
Brushed Satin Brass
Option
Damp Rated
, Energy Star
Family
Wrap Custom
Voltage
120V
Air Flow CFM
11206
Air Flow Efficiency
366
Blade Pitch
Varied
Canopy
6.14 Dia, 2.55 H
Harmonized Codes
8414.51.3000
Length
64, 72, 84
Max Width
84
Motor Size
153 x 25
Motor Type
DC
Ship Carton Height
7.6
Ship Carton Length
16.34
Ship Carton Width
8.86
Ship Weight
16.1
Sold By
Each
Warranty
Limited Lifetime
Weight
13.3
Airflow Efficiency Low
1172
Airflow Efficiency Medium
827
Avg Airflow Efficiency
420
Avg CFM Energy
8762
Avg Energy Use Watts
21
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Canopy Diameter
6.14
Canopy Height
2.55
Cap Included
Yes
Case Quantity
1
CEC Uploaded
Yes
Ceiling To Blade Edge
15.33
Ceiling to Bottom No LK
15.96
Ceiling to Bottom with LK
16.55
CFM Low
3516
CFM Medium
7859
Compatible Accessories
DR1-12BS, DR1-18BS, DR1-24BS, DR1-36BS, DR1-48BS, DR1-60BS, DR1-72BS, DR1-CPBS, SCB1-52
Compatible Blades
BPW8531-64BL, BPW8531-64BN, BPW8531-64DWA, BPW8531-64N, BPW8531-64WE, BPW8531-64WW, BPW8531-72BL, BPW8531-72BN, BPW8531-72DWA, BPW8531-72N, BPW8531-72WE, BPW8531-72WW, BPW8531-84BL, BPW8531-84BN, BPW8531-84DWA, BPW8531-84N, BPW8531-84WE, BPW8531-84WW
Compatible Light Kits
LK8530BS
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.43
Current Draw Low
0.05
Current Draw Medium
0.15
Damp Rated
Yes
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
8
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
8.88
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
27
Max Watt
31
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
81
RPM Low (II)
29
RPM Medium (IV)
56
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts Low
3
Watts Medium
10
Manufactured By
Fanimation
Other Details:
- 11206 CFM on High
- Compatible with smart home devices using the Wi-Fi fanSync app
- Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
- Energy Star Most Efficient 2022
- Set of (3) Damp Rated blades with multiple finish options available and 18 watt LED CCT Select light kit available (sold separately). Compatible with Wrap Custom blade sets with sweeps between 64 and 84 inches
- Tr305 Handheld Remote With 23a Battery Included
Call for Price
BASE PRICE:
$
489
98
/
/ 1
($489.98 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 118 items available.
- More Items available 05/05/2025.
